GET READY TO ROLL. ASSEMBLY MADE SIMPLE.
Installation & Assembly Instructions
Tailbreaker Assembly Video
HITCH ASSEMBLY SEQUENCE
PREP & INSERT THE MAIN YOKE
Remove the components from your premium Tailbreaker carry bag and ensure your vehicle’s 2-inch hitch receiver is clear of any dirt or debris. Slightly open the swing arms to get a comfortable, balanced grip on the main yoke, then slide the solid steel frame directly into the receiver.
ALIGN AND SLIDE TO INTERLOCK
Clear all debris from your vehicle's standard 2-inch receiver box. Lift the primary hitch base by the structural center beam and slide the solid steel shank directly into the receiver sleeve until the primary retention ports line up horizontally.
ENGAGE THE NO-TOOL LOCK
Turn the quick-locking knob clockwise until it is firmly hand-tight. This secures the system and completely eliminates shifting or rattling. The entire system is tool-free, no wrenches or loose hitch pins required.

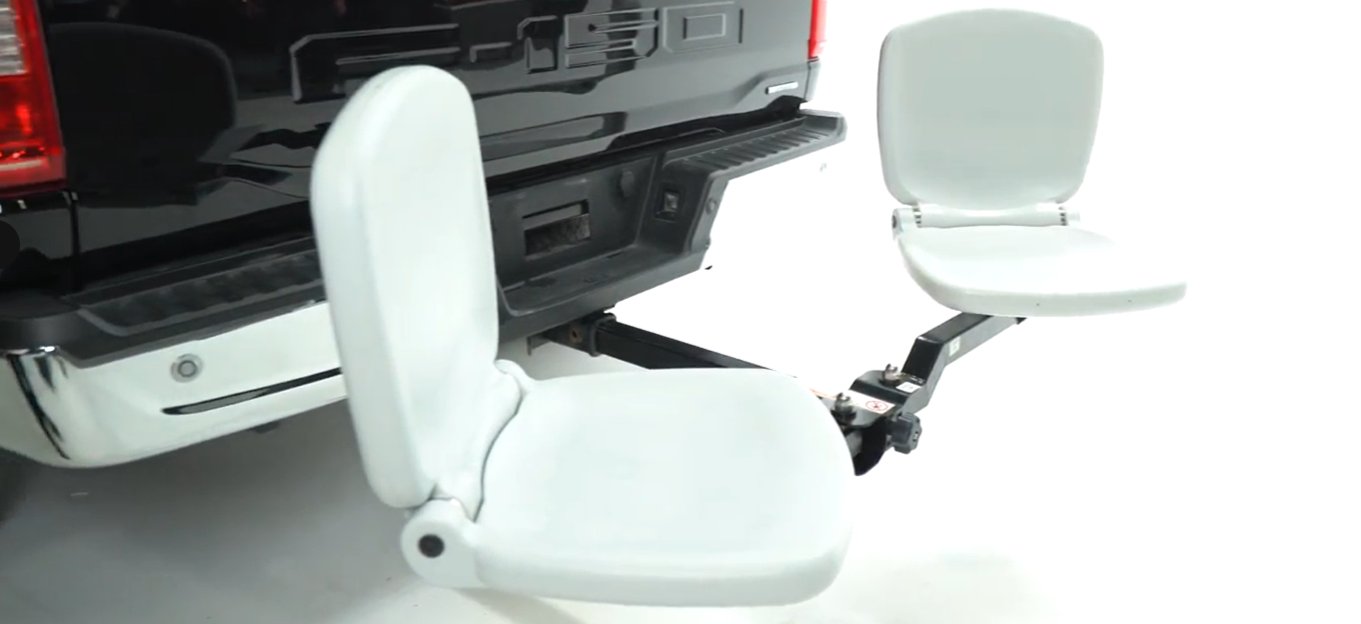

DEPLOY THE SWING ARMS
Pull the swing arms outward to your desired operational angle. You can angle them to keep your tailgate fully open and accessible as a table or prep station, or swing them out for a wider panoramic view of your surroundings.

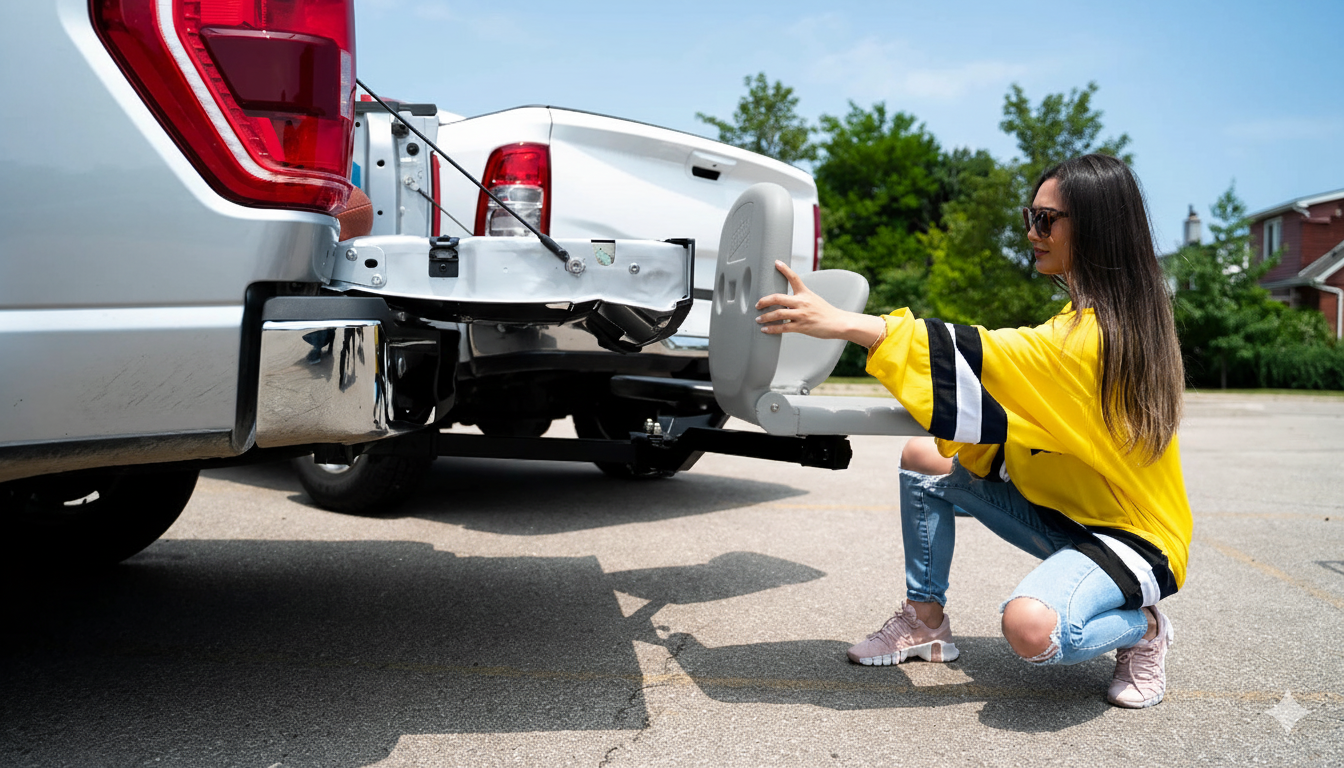

MOUNT & SECURE THE SEATS
Take one of the ergonomic, molded polymer seats and pull the locking pin while sliding it onto the swing arm. Release the pin and push the seat forward until you hear a solid click. Give it a gentle tug to confirm it’s locked securely in place. Repeat for the second seat, and you’re ready to give your tail a break.

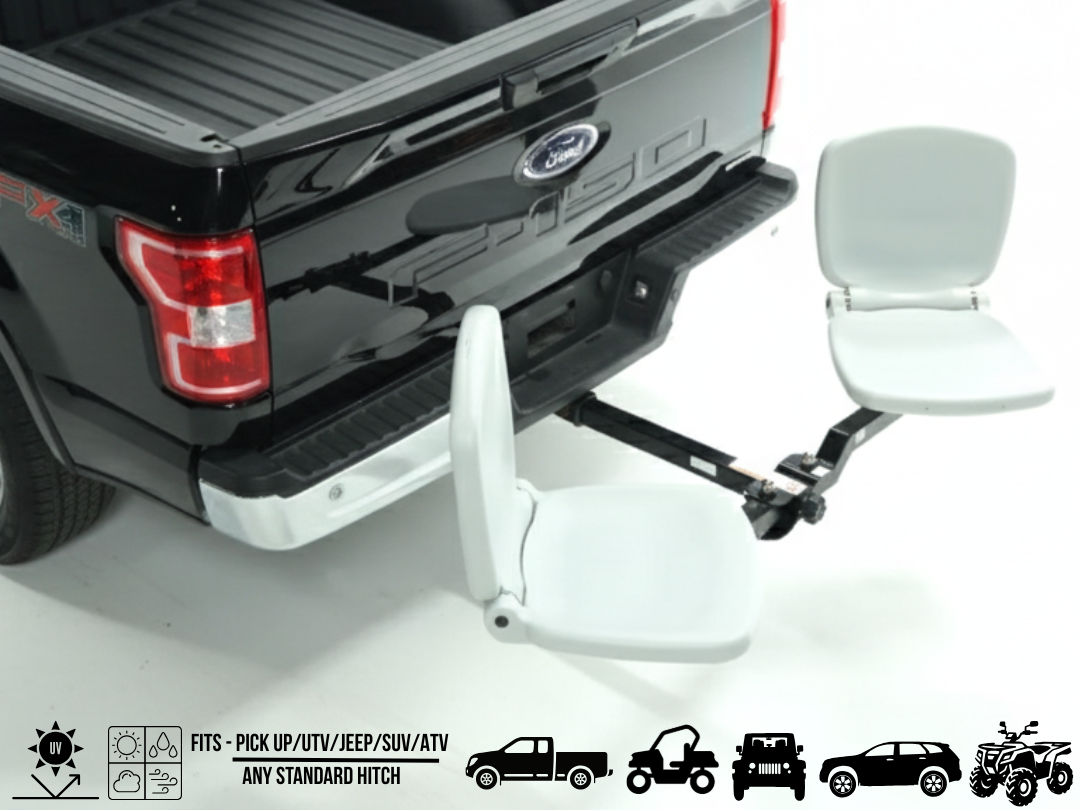

MULTI-MODE SYSTEM
The Tailbreaker requires no locking pins to stay in position. Thanks to our built-in precision tension system, the system will remain exactly where you place it. It will never move on its own, yet it smoothly rotates and swivels whenever you apply deliberate user force to push or adjust it.
Tailbreaker is engineered for seamless versatility. Simply engage the 180° swing arms to rotate your seating outward, instantly clearing the way to drop your tailgate. Need full access to your cargo? Fold both seats flat and slide the unit beneath the tailgate line for a completely unobstructed workspace. For quick, one-handed access, simply pivot an individual seat to the side. Your vehicle, fully optimized.
COMPLIANCE & FIELD TOLERANCES
Condition: Seating assembly unlevel due to uneven, sloped, or soft ground at the campsite or tailgate..
Ground Balance: Make sure your vehicle is parked on a reasonably flat surface. Setup Guide: If the ground is slightly uneven, use the built-in two-setting height adjustment to get the perfect clearance. For soft ground like mud, sand, or loose gravel, make sure your vehicle is parked safely before swinging the seat arms out.
Condition: Micro-movement or frame play detected at the 2” hitch receiver interface during setup.
Ground Balance: Make sure your vehicle is parked on a reasonably flat surface. Setup Guide: If the ground is slightly uneven, use the built-in two-setting height adjustment to get the perfect clearance. For soft ground like mud, sand, or loose gravel, make sure your vehicle is parked safely before swinging the seat arms out.
Condition: Weight or balance limit exceeded on the quick-connect expandability system port
Ground Balance: Make sure your vehicle is parked on a reasonably flat surface. Setup Guide: If the ground is slightly uneven, use the built-in two-setting height adjustment to get the perfect clearance. For soft ground like mud, sand, or loose gravel, make sure your vehicle is parked safely before swinging the seat arms out.
Setup & Breakdown
Mount to your hitch
Slide the seating system into your truck or van's hitch receiver and secure it per the included guidance.
Swing and set height
Swing the arms out, pick one of two height settings, and use the 360° swivel to face the crew or the work.
Sit or flip to table mode
Drop into seat mode or fold flat to a work surface with two cup holders. Pack into the bag when you roll.
